WAND Handheld Data Collector
Portable wall thickness data collection device

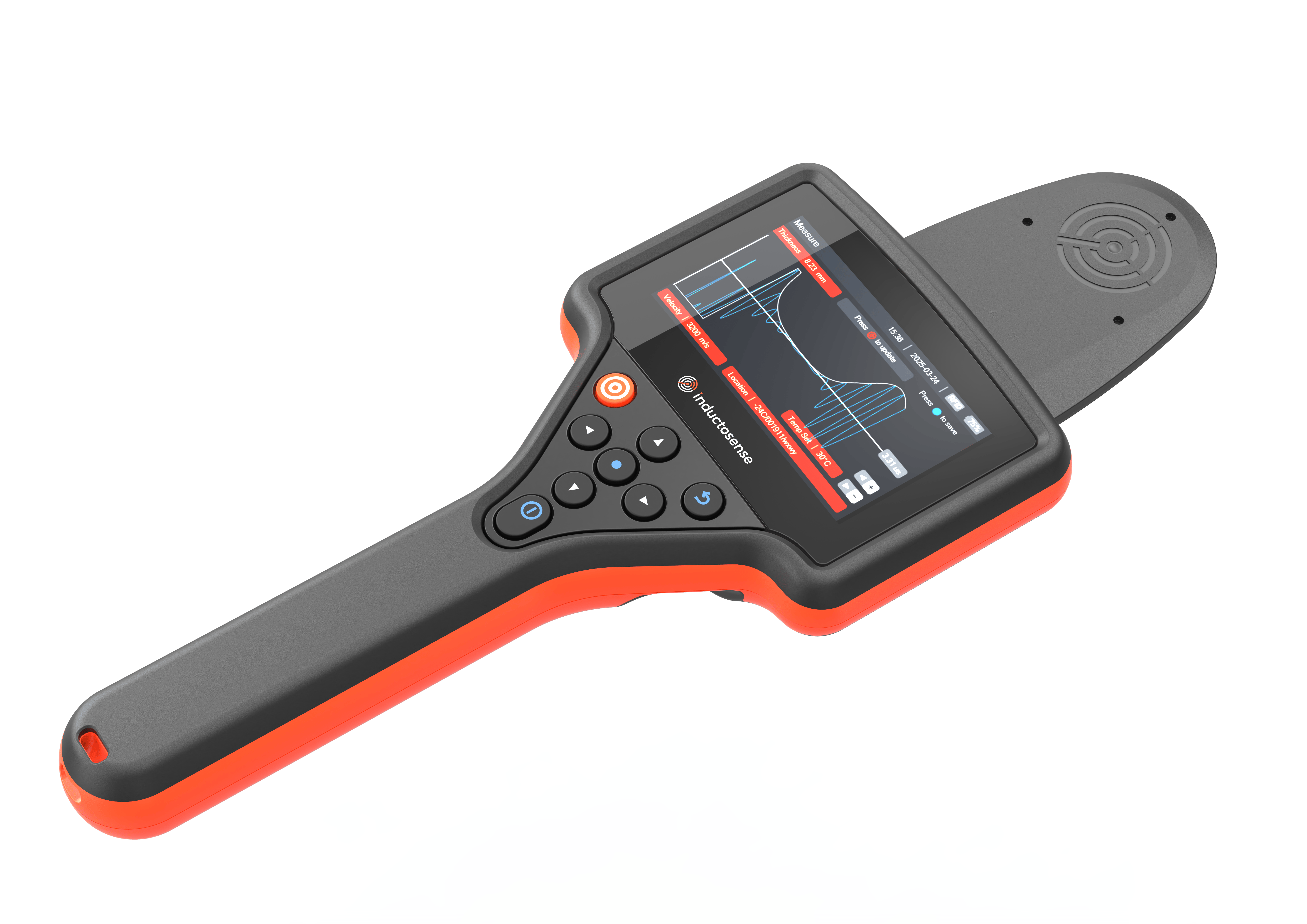

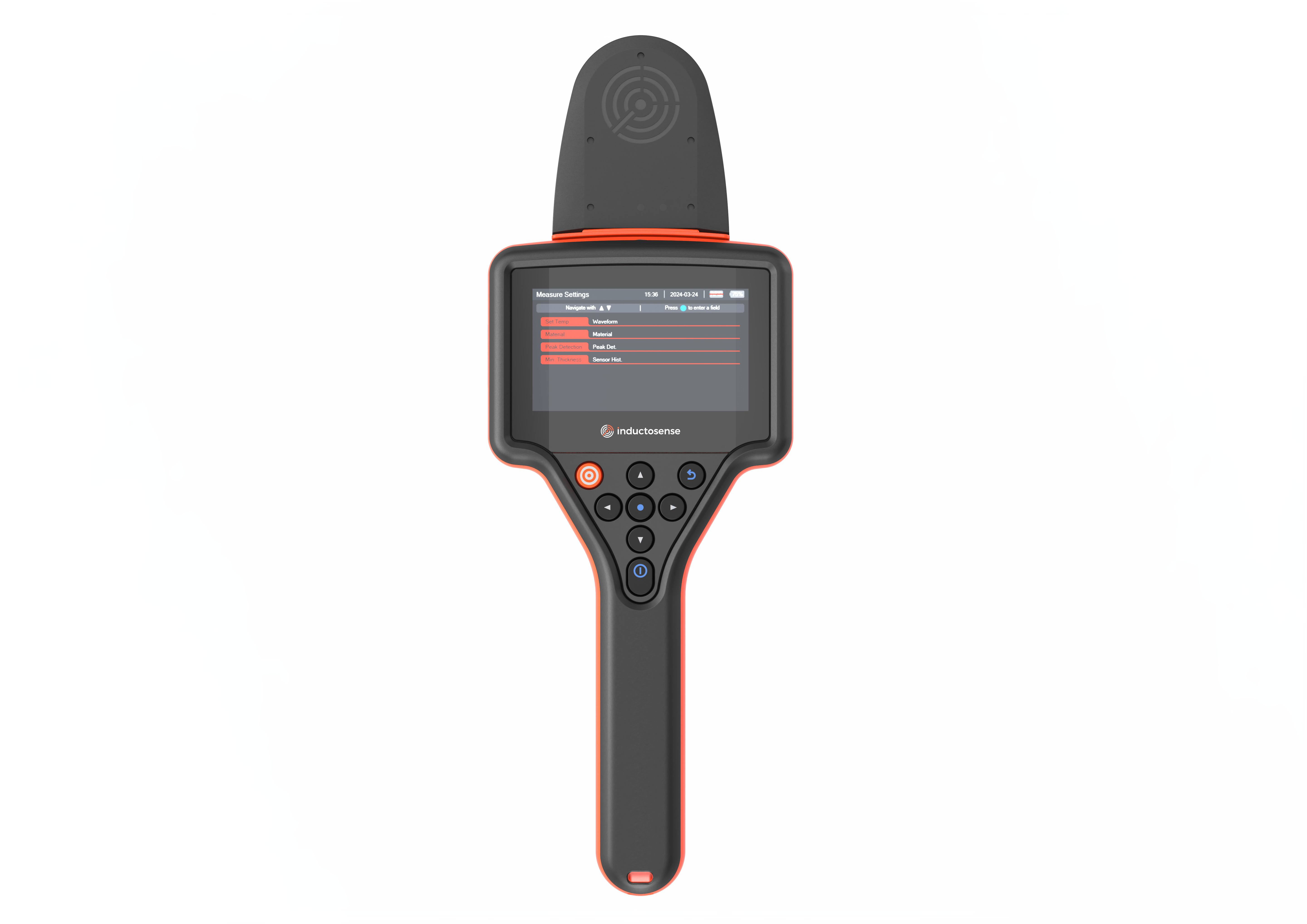

The WAND Handheld Data Collector (WAND-HDC) is an easy-to-use handheld tool that wirelessly activates and then collects a thickness reading from a WAND TM Sensor in less than a second.
Features & Benefits
Features
Fast Wireless Readings: Instantly collects wall thickness data from WAND TM Sensors in seconds.
Minimal Training Required: Displays thickness values, ultrasonic A-scan data, and RFID sensor information, with minimal training required.
RFID Traceability: Integrates with RFID-tagged sensors for automated data traceability and sensor identification.
Device Storage: Store up to 5000 readings and sensor locations on the WAND-HDC, enabling extended field work without needing to return to the office.
Seamless Data Management: Works with the iDART software for accurate wall thickness data management, review, and analysis.
Robust Design: Lightweight and built tough for regular use in industrial environments.
Applications

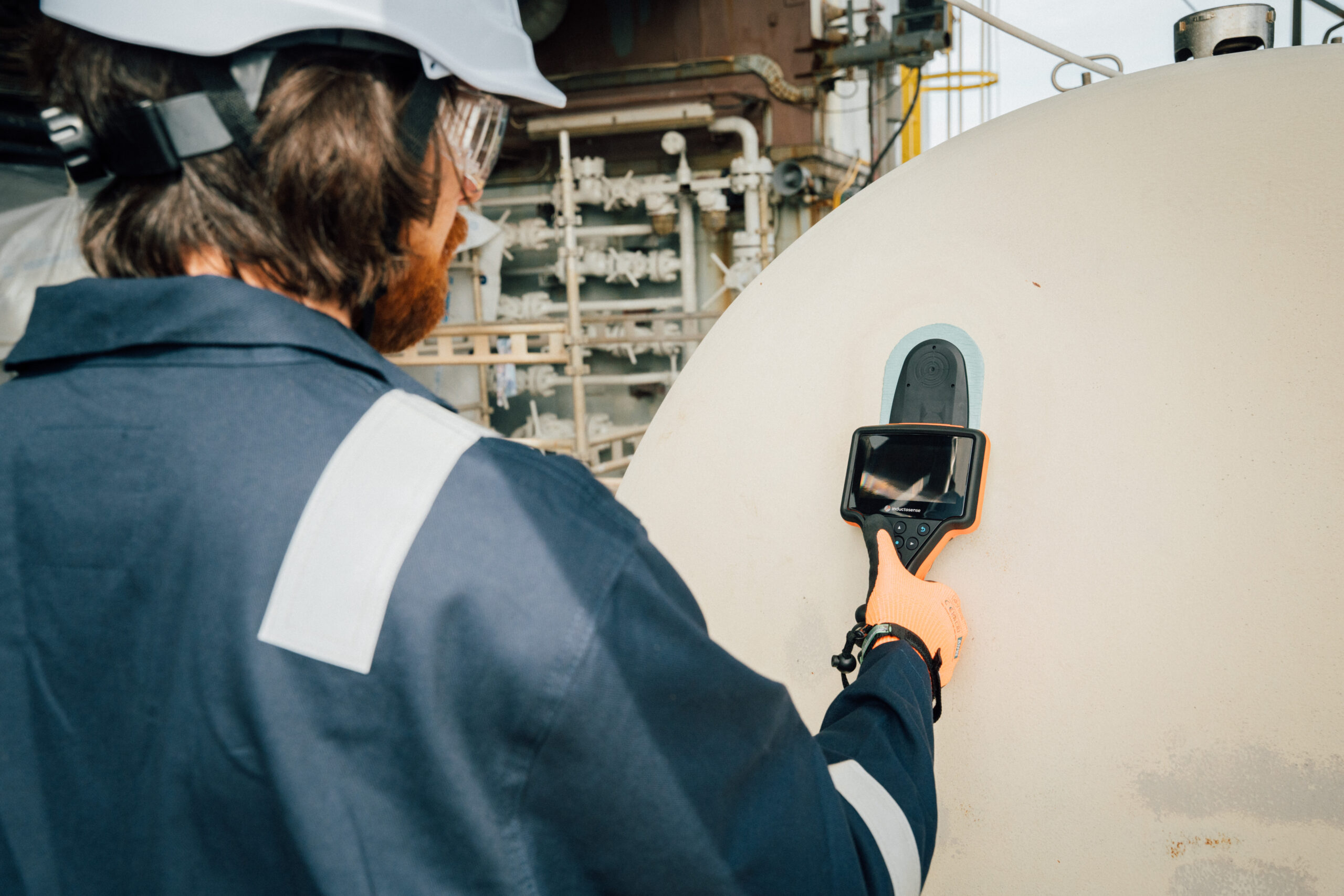

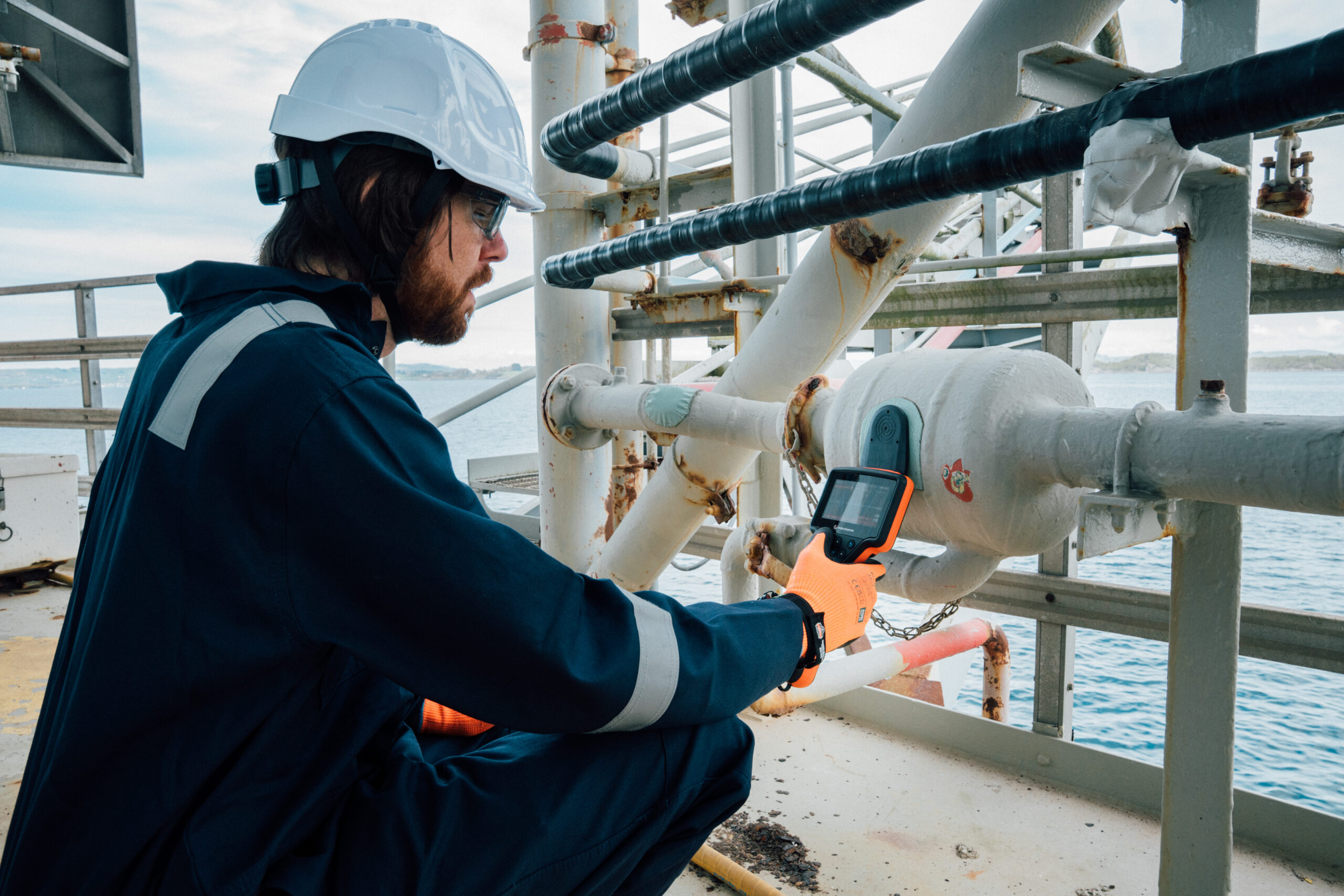

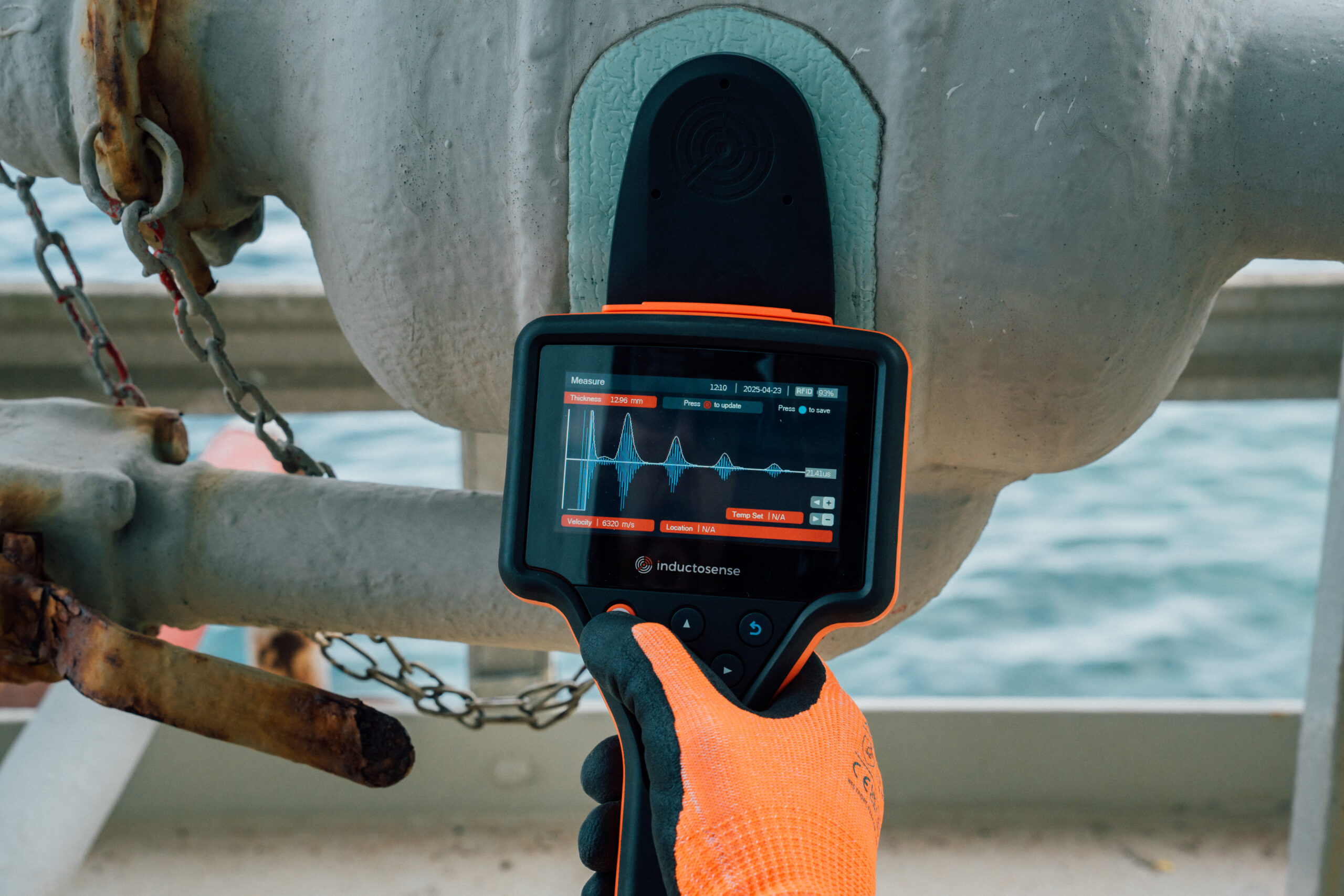

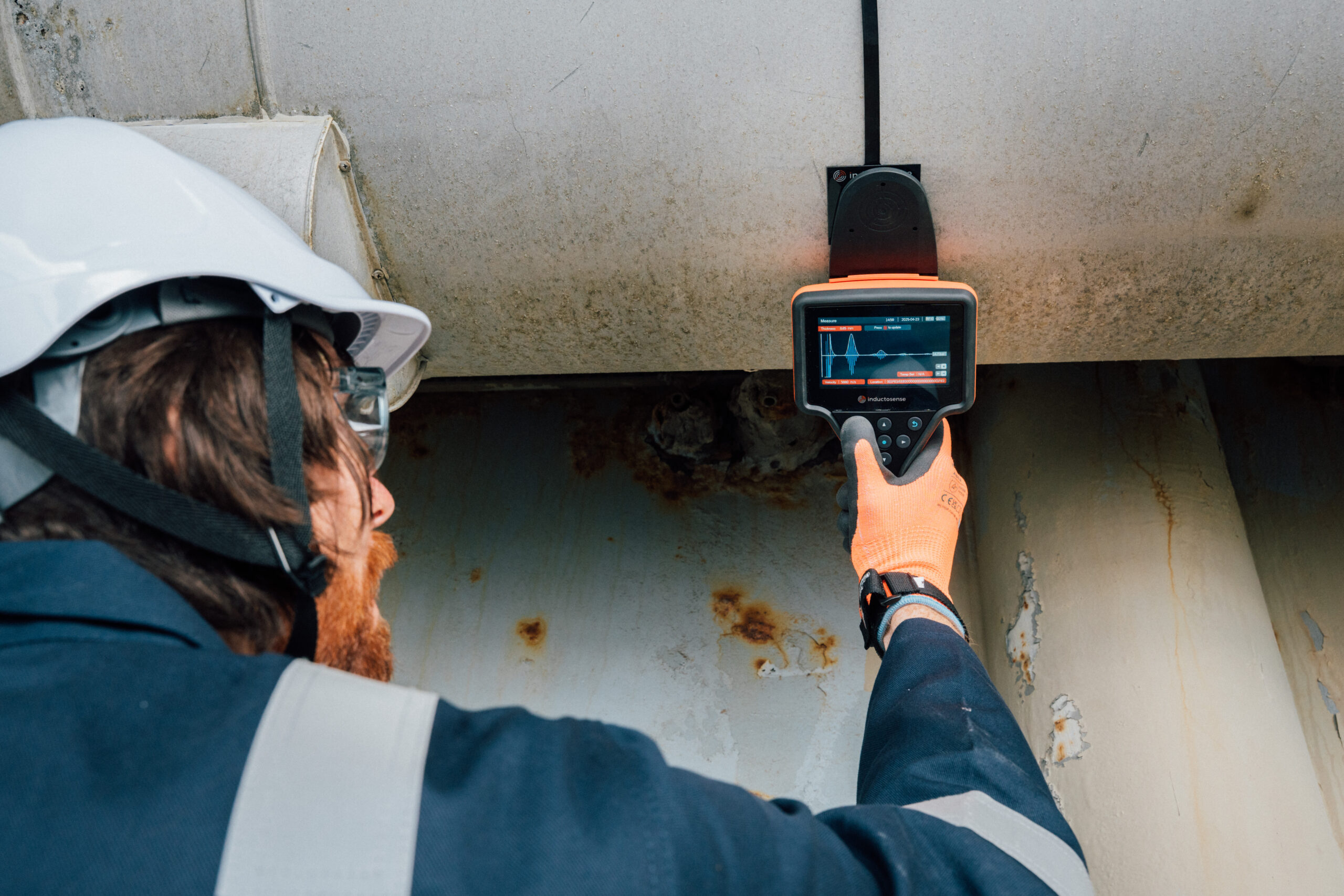

Manual Data Collection: Ideal for on-site collection of ultrasonic thickness data on piping, tanks, and vessels.
Safety in Industrial Environments: Enables safe corrosion and erosion monitoring across sectors such as oil & gas, chemicals, mining and nuclear.

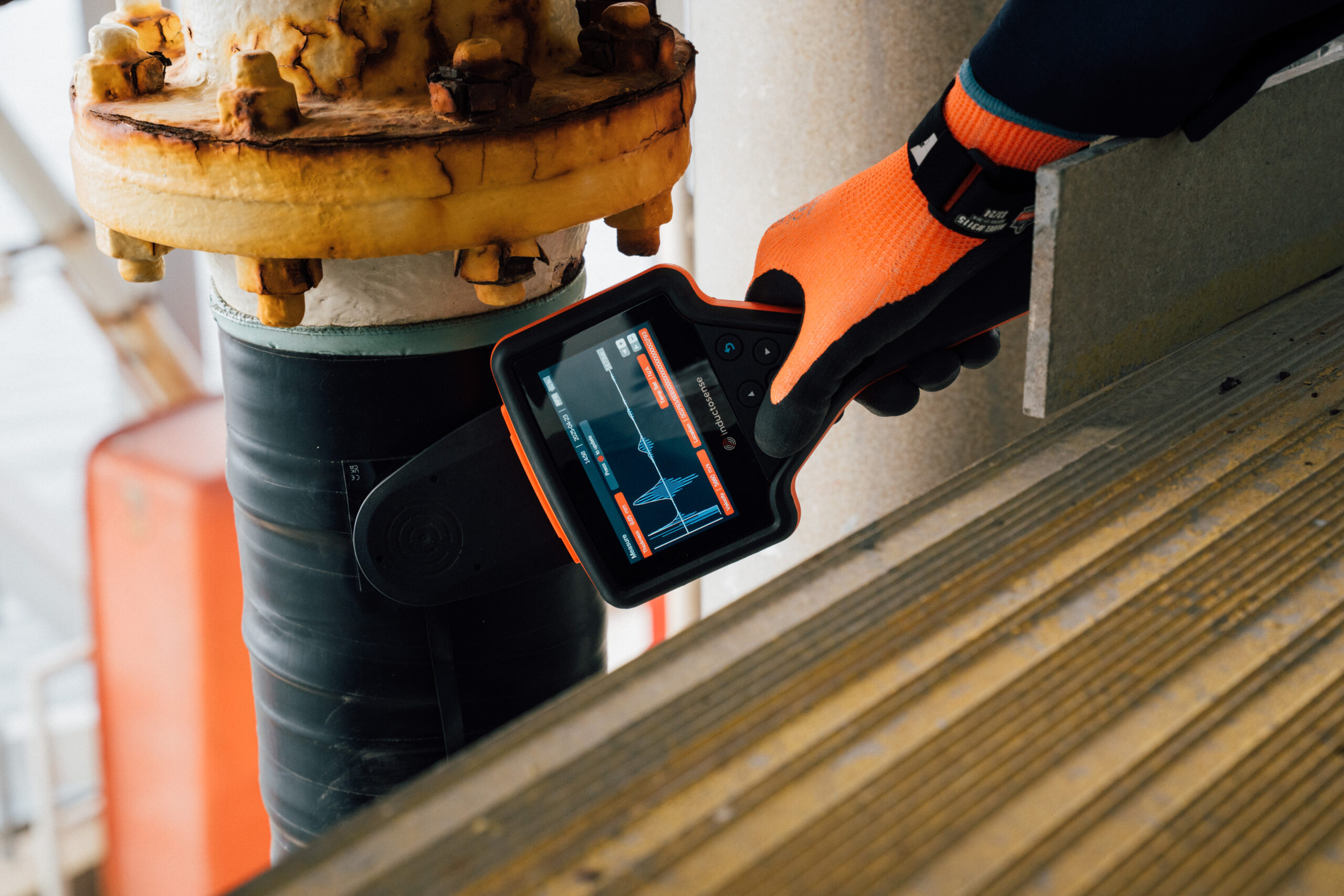

Hard-to-Access Areas: Supports quick data retrieval from insulated or difficult-to-reach assets without removing coatings.
Specifications
Product Code
WAND-HDC (V3)
Dimensions
38.5cm (L) x 13.6cm (W) x 3.8cm (H)
15.2 inches (L) x 5.4 inches (W) x 1.5 inches (H)
Weight
650g
Power Input
USB-C 5V DC 3A
Data Output
USB 2 HS
Charging
Via supplied power adaptor
Via PC USB port
Battery Type
Lithium-ion
Signal Acquisition Time
1 second
Temperature Range
-10°C to +45°C
14°F to +113°F
Thickness Calculation Method
First arrival and Peak to Peak
RFID Reader
EU and US detection of sensor tags
Certifications
CE, FCC, IP55
Included items
- WAND Handheld Data Collector

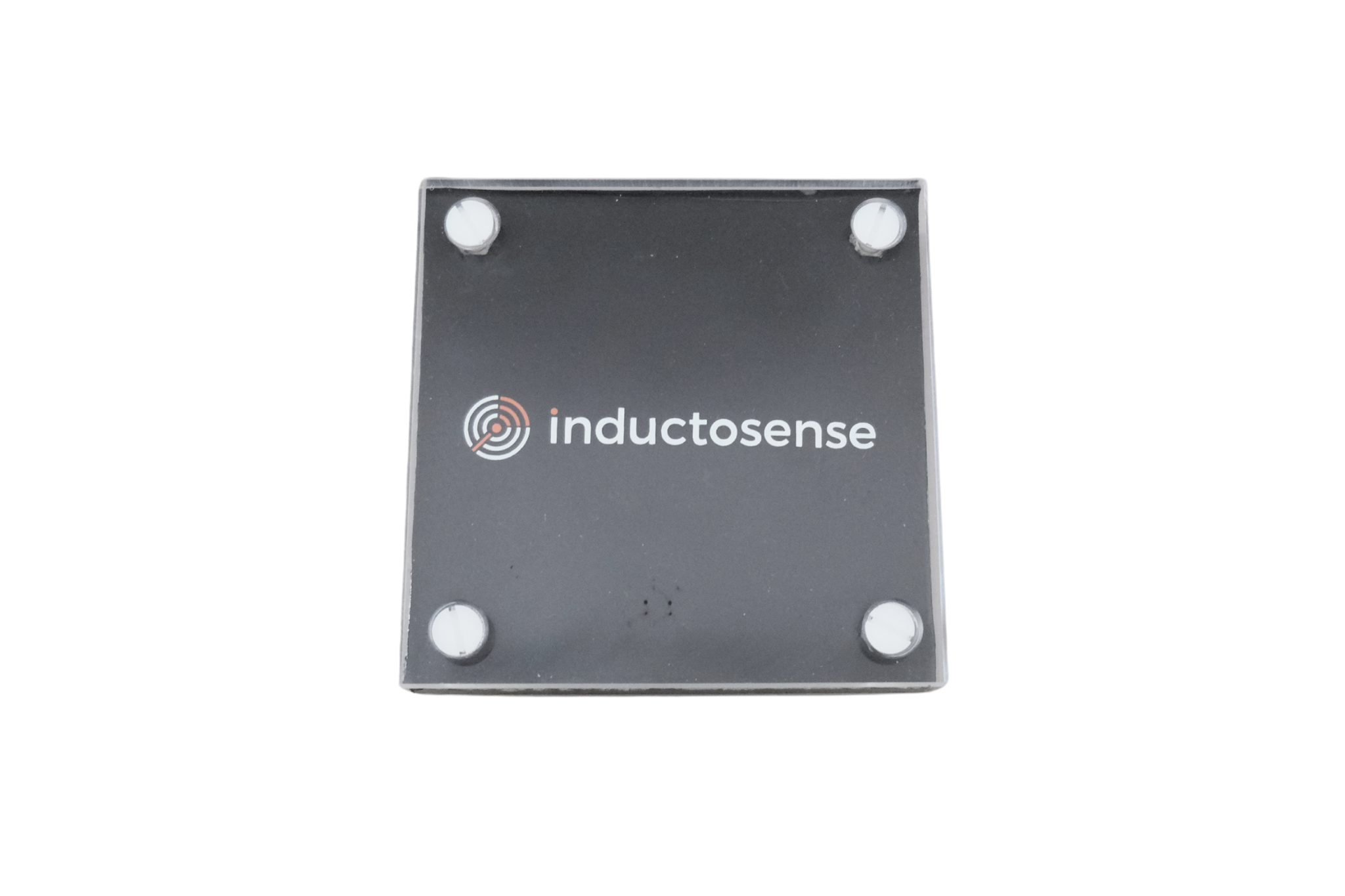

- Testing block with B5R sensor

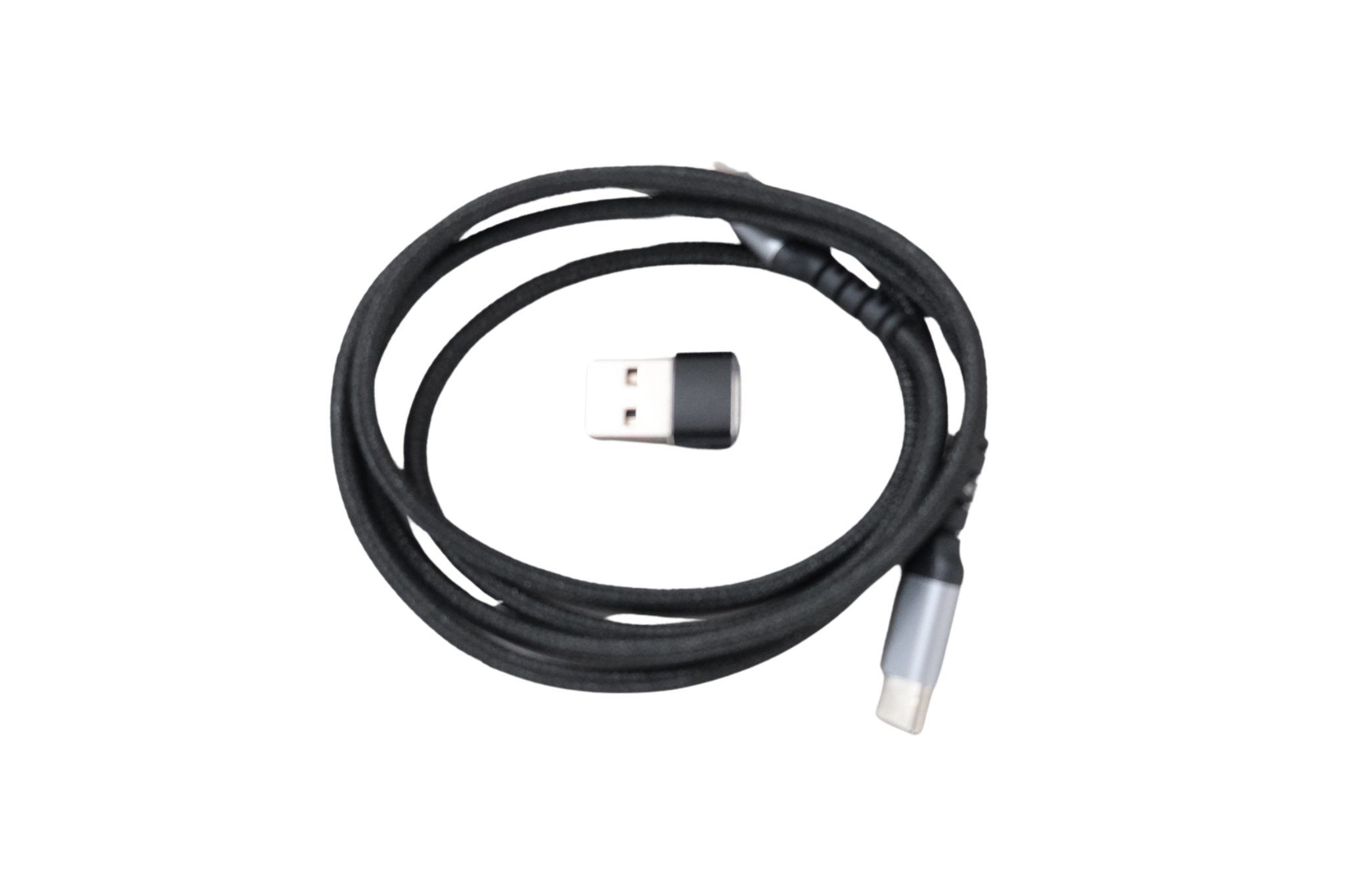

- USB-C charging and data cable
- USB-C to USB-A adaptor

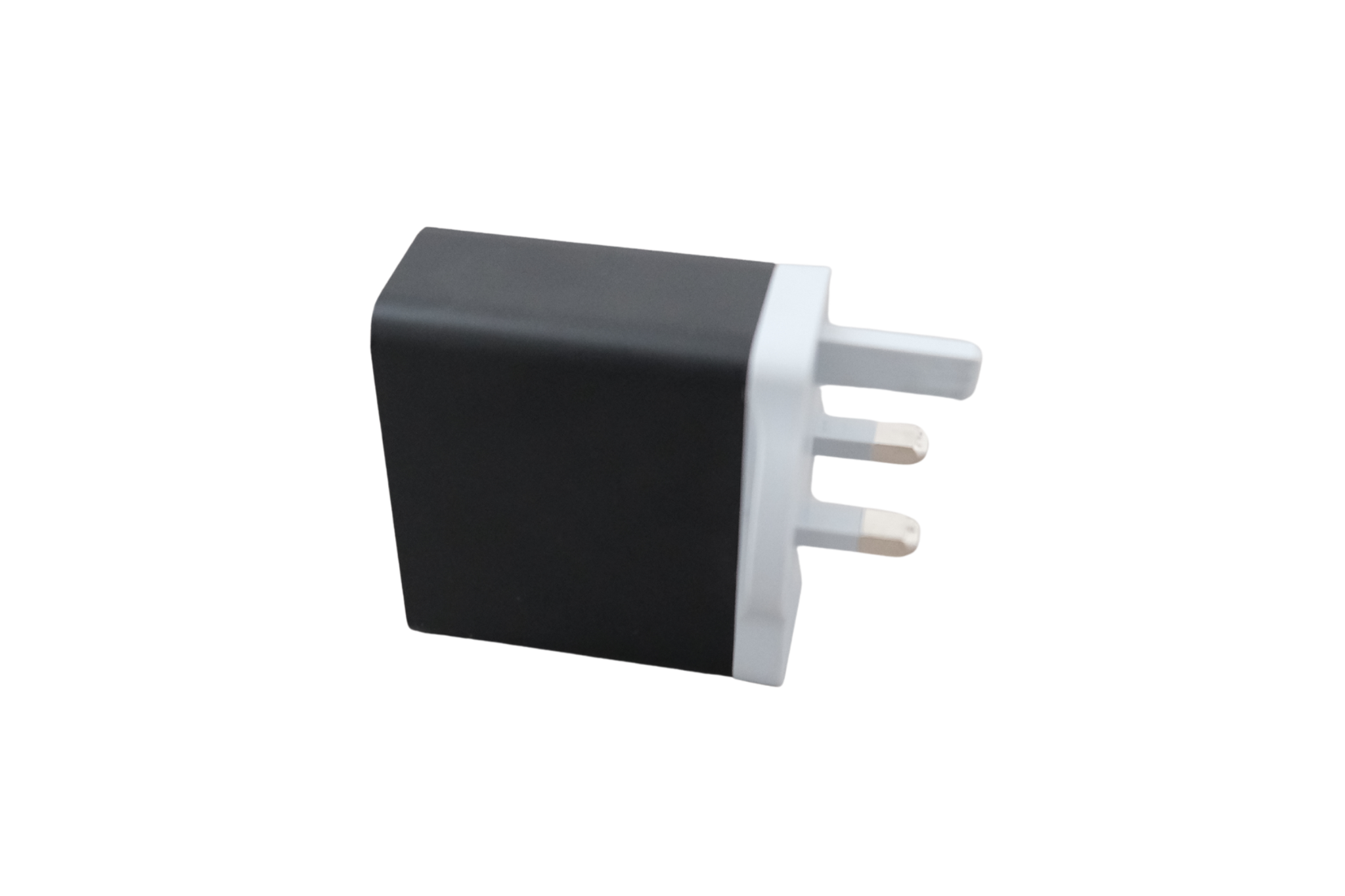

- USB-C power adaptor

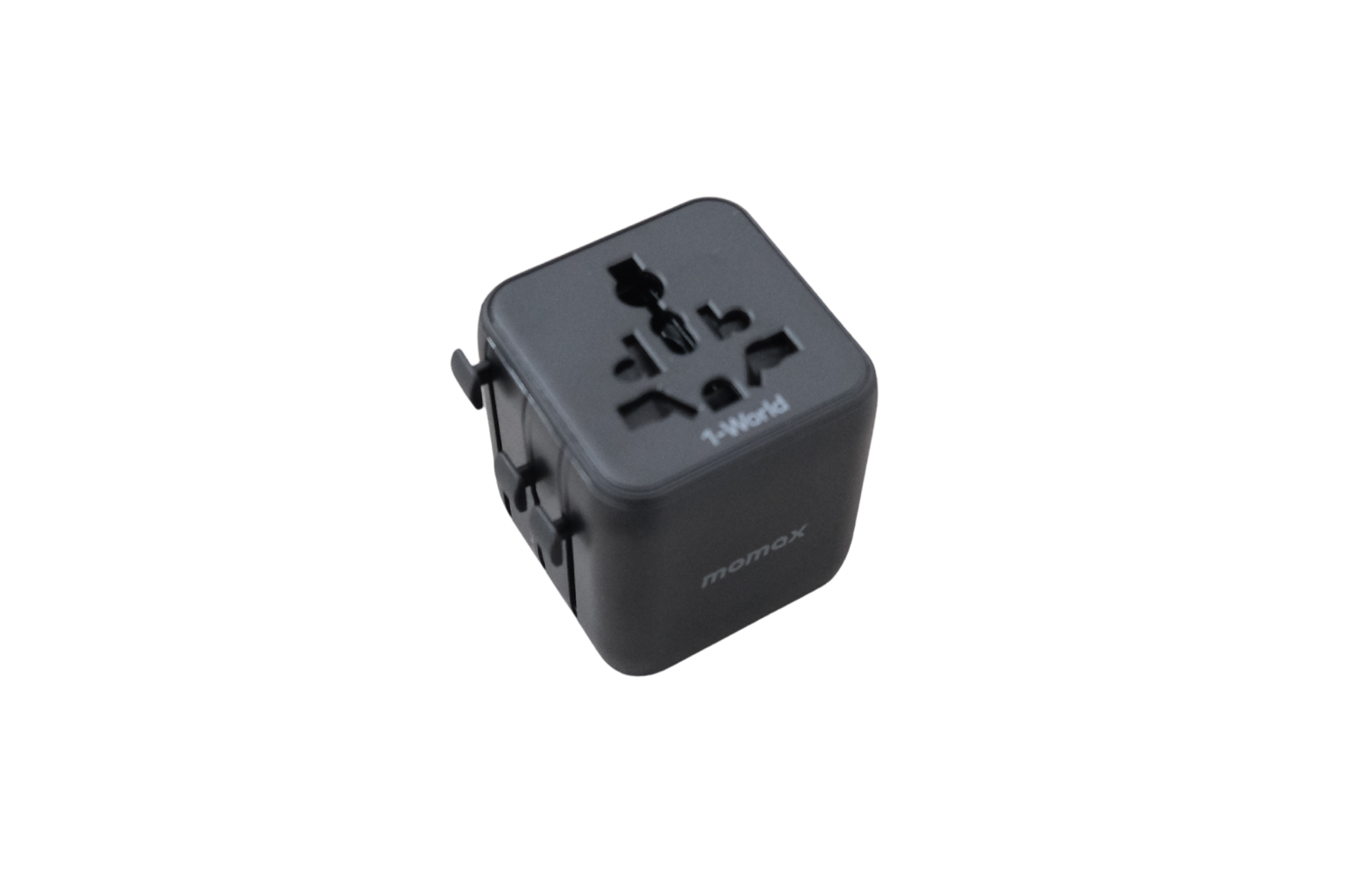

- International plug adaptor
Downloads
Access our product datasheet here to explore specifications, features, and technical information for this WAND technology.
Download Datasheet
