Corrosion Monitoring of Sulfuric Acid Tank Shell and Piping Using WAND Sensors

Spots of localised corrosion on the acid tank shell needed to be very precisely monitored to assess whether they were ‘active’.

Overview

Application: WAND TM Sensors applied to acid tank shell to monitor corrosion

Client: Chemical manufacturer

Asset: Sulfuric acid tank shell and piping

Operating temperature: Ambient

Type of degradation: Stress corrosion

Frequency of inspection: Once/year - Once/5 years

Challenges

Spots of localised corrosion on the acid tank shell needed to be very precisely monitored to assess whether they were ‘active’. Manual UT was not giving a good indication of this, since pinpointing the exact same location each time was not possible, and so this was not providing any meaningful data.

Corrosion rate at various locations on the tank shell and piping also needed to be determined. Once again, manual UT was not providing usable data for this, due to poor repeatability.

Solution

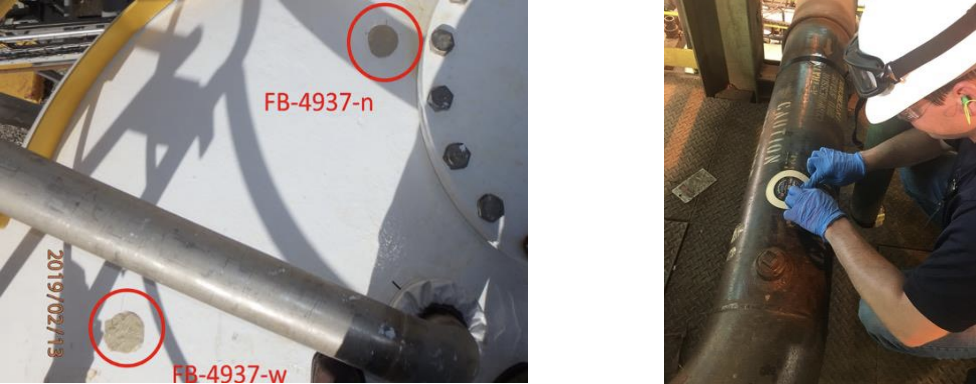

The customer installed WAND sensors at all known spots of localised corrosion on the tank shell and pipework, replacing manual UT. Data from the sensors was collected using the WAND handheld data collector.

Results

The spots of localised corrosion were very precisely monitored using the permanently installed WAND sensors. This allowed the customer to determine in a matter of weeks whether the spots were ‘active’ or not.

Similarly, using WAND, the rate of corrosion on the tank and piping could be accurately determined, giving the customer data which they then used to optimize their corrosion management program.
