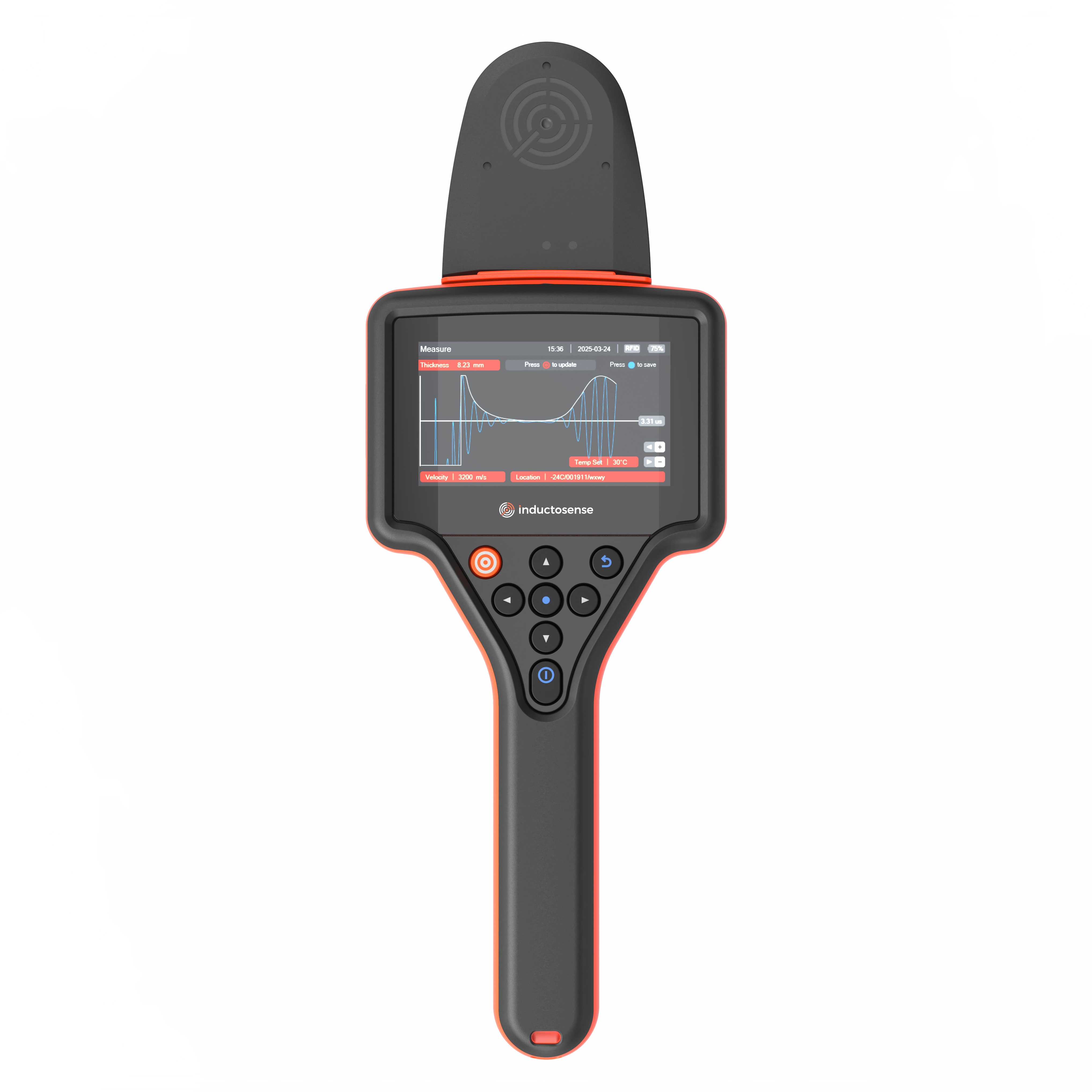

WAND Handheld Data Collector (HDC)
Portable wall thickness data collection device
An easy-to-use handheld device that wirelessly activates and collects a thickness reading from a WAND TM Sensor when in close proximity. The interface displays the wall thickness, A-scan and sensor location information. The HDC is designed so that anyone can take an ultrasonic thickness measurement in the field, with the simple press of a button.

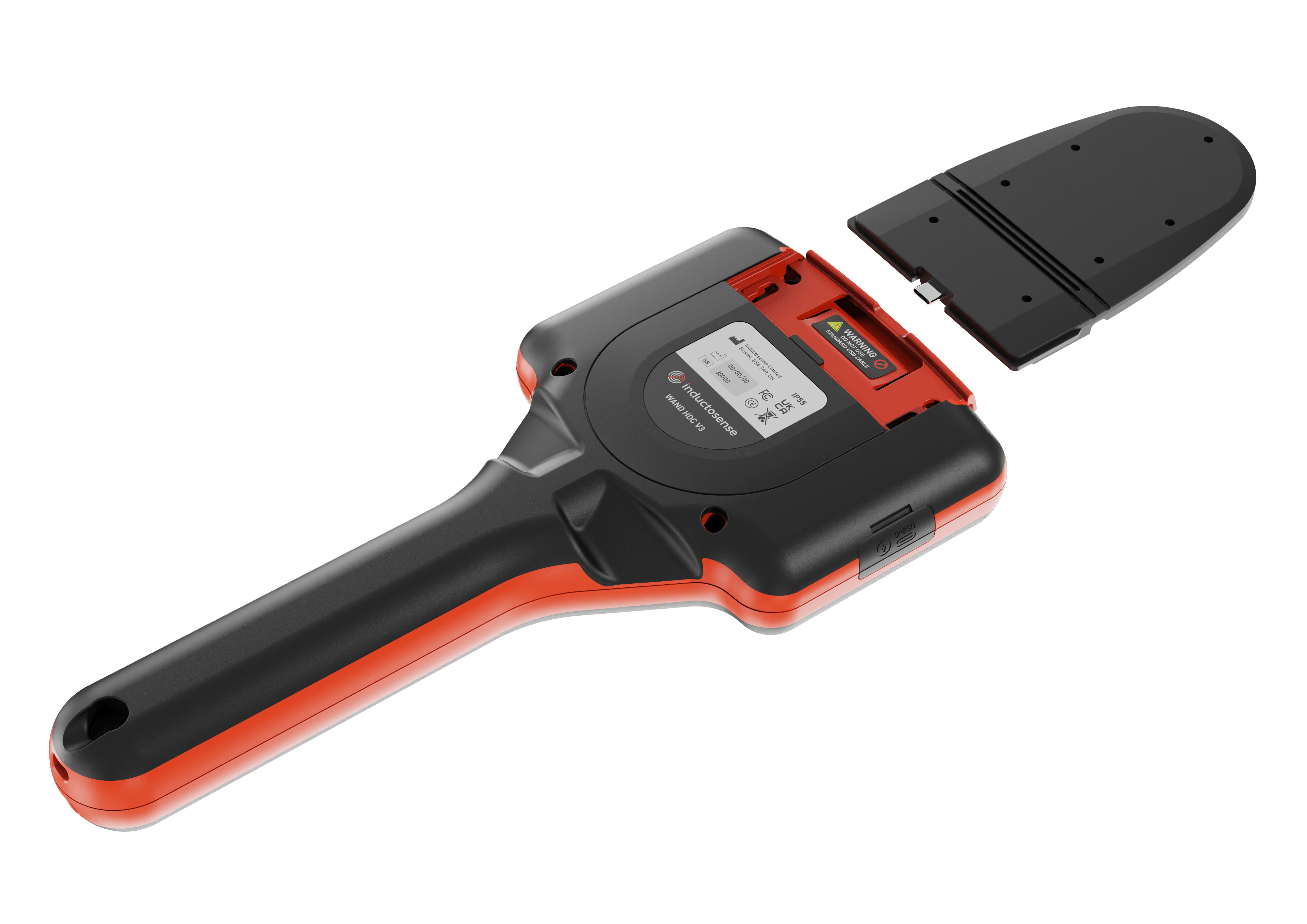

HDC v3 retains the key features of the HDC v2 while introducing new advancements, including a flexible cartridge, USB-C charging via your PC, a larger and brighter display, and built-in, future-proof Bluetooth connectivity.
Technical Specifications
Product Code
WAND-HDC V3
Dimensions
38.5cm (L) x 13.6cm (W) x 3.8cm (H)
15.2 inches (L) x 5.4 inches (W) x 1.5 inches (H)
Weight
650g
Power Input
USB-C 5V DC 3A
Data Output
Via supplied power adaptor
Via PC USB port
Battery Type
Lithium-ion
Signal Acquisition Time
1 second
Temperature Range
-10°C to +45°C
14°F to +113°F
Thickness Calculation Method
First Arrival and Peak to Peak
RFID Reader
EU and US detection of sensor tags
Certifications
CE , FCC, IP55
Included Items
- Testing block with B5R sensor
- USB-C charging and data cable
- USB-C power adaptor
- USB-C to USB-A adaptor
- International plug adaptor
*Device can operate at -10°C / 14°F if already powered on and kept in continuous use. Startup below 0°C / 32°F is not guaranteed. Never charge below 0°C / 32°F.
