WAND Payload Data Collector
A simple-to-implement ultrasonic monitoring system designed for industrial inspection drones
The WAND Payload Data Collector (WAND-PDC) is a modular, simple-to-implement ultrasonic monitoring system designed for industrial inspection drones, enabling efficient and cost-effective wall thickness data collection in hazardous and inaccessible locations.
Features & Benefits
Features
Drone Compatibility: Modular plug & play payload compatible with a range of industrial drones
Live Wall Thickness Monitoring: Reliable and repeatable wall thickness data with live A-scan readings
Reliable Traceability: RFID-based WAND TM Sensor identification for fully digitalised traceability
Wireless Operation: Wireless payload range up to 100m / 328ft
Flexible Payload Alignment: Inductive coupling for flexible payload alignment & efficient data collection
Applications
Accurate Thickness Measurements: Accurate, repeatable thickness data directly from installed WAND TM Sensors
Reduced Personnel Exposure: Reduce personnel ‘at-risk’ hours & cost linked to rope access/scaffolding
Improved Asset Accessibility: Enable increased accessibility on coated and insulated assets
Efficient Data Collection: Collect up to 50 wall thickness measurements in 20 minutes*
*As demonstrated during WAND-PDC pre-production trials
Specifications
Product Code
WAND-PDC
Data Collector Dimensions
12.5 cm (L) x 9 cm (W) x 2.4 cm (H)
4.92 in (L) × 3.54 in (W) × 0.94 in (H)
Reader Dimensions
9.8 cm (L) x 6.3 cm (W) x 5 cm (H)
3.86 in (L) x 2.48 in (W) x 1.97 in (H)
Weight
300 g
10.6 oz
Modes of Operation
Standalone; Integrated
Standalone Communication
2.4 GHz Long Range Wi-Fi
Wireless Range
Up to 100 m
Up to 328 ft
Reading Rate
>4 per second
Latency
<0.5 seconds
Power Supply
UAV or other USB power source
Power Input
5 V, 2 A max (5 W continuous)
UAV Compatibility

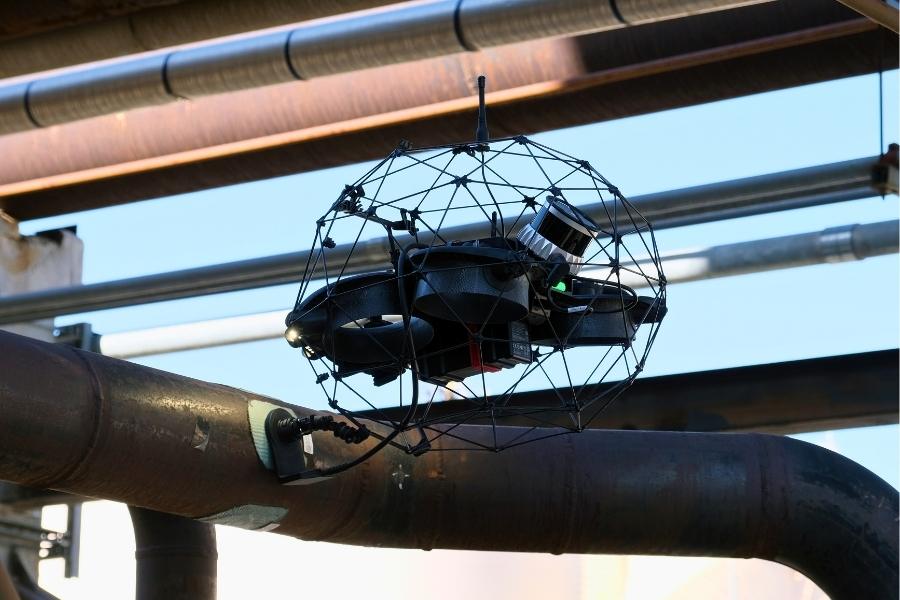

Flyability Elios 3

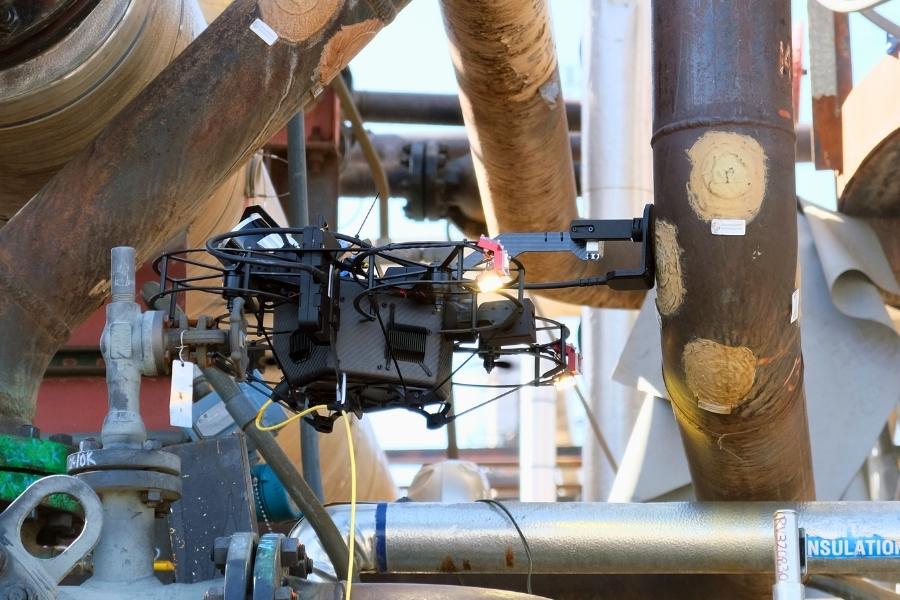

ScoutDI Scout 137 Gen3

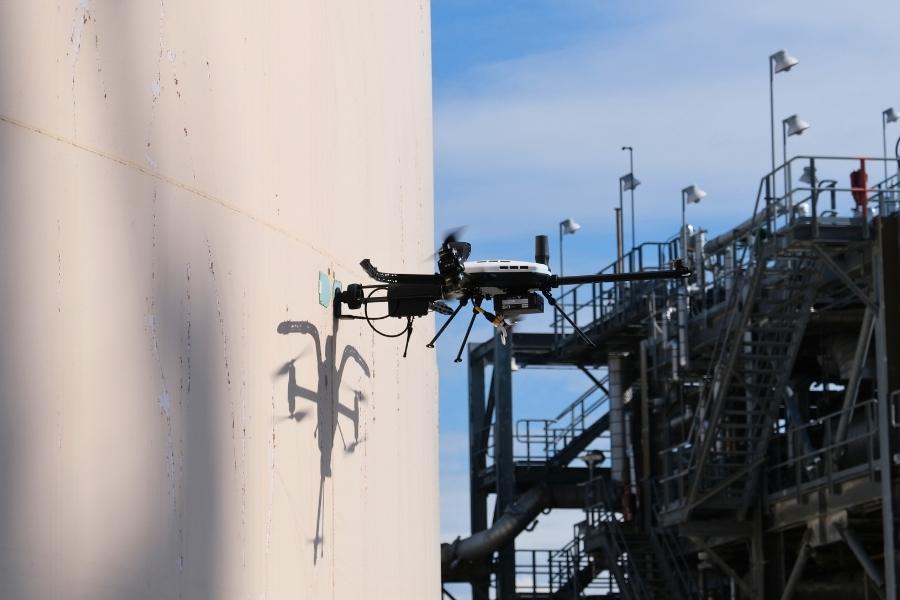

Voliro T
Accessory Compatibility
ECHO accessory
Cable Length Options
20 cm, 30 cm, 50 cm, 70 cm,100 cm
7.87 in, 11.81 in, 19.69 in, 27.56 in, 39.37 in

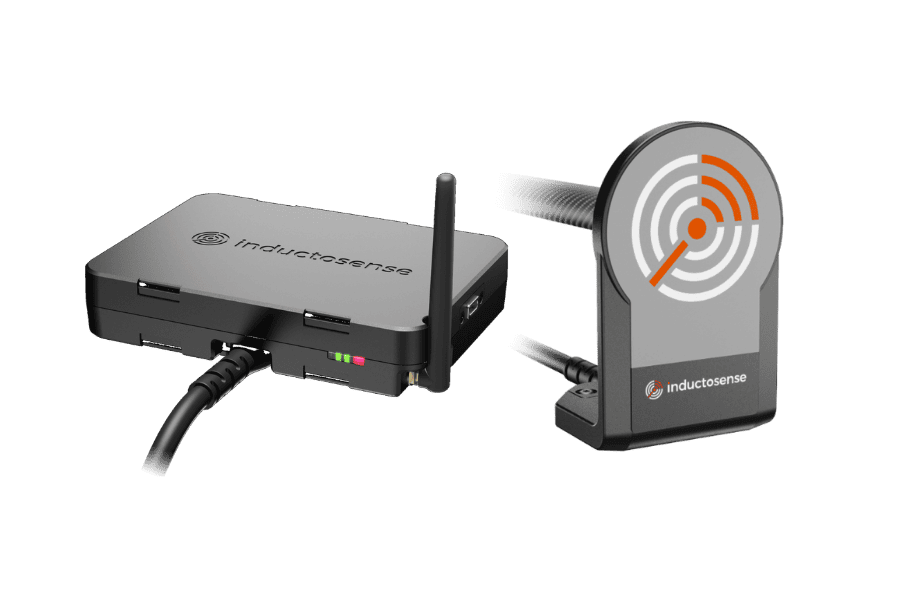

Included items
- WAND Payload Data Collector
- Ground Station
- Testing block with B5R sensor
- USB-C charging and data cable
Downloads
Access our product datasheet here to explore specifications, features, and technical information for this WAND technology.
Download Datasheet
FAQs
What is the WAND-PDC?

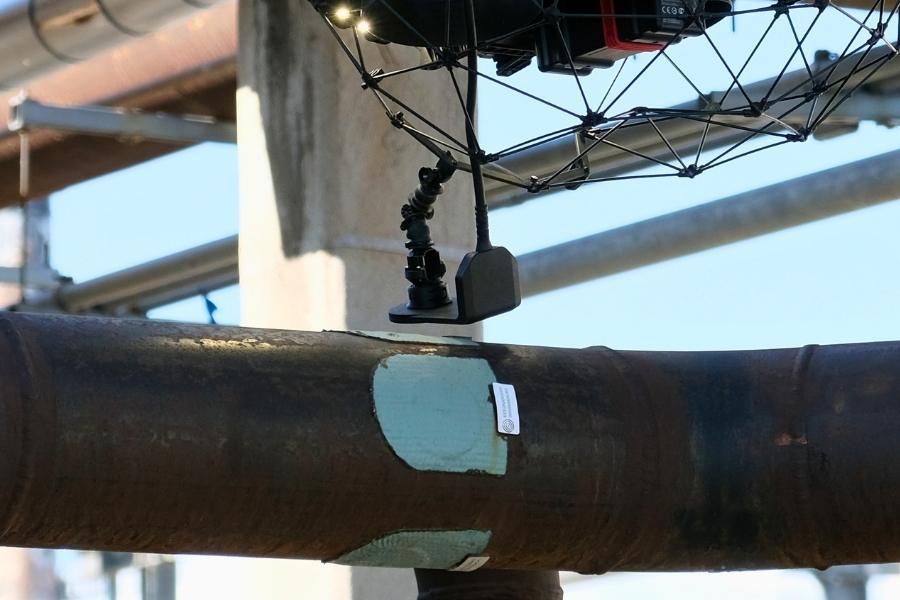

The WAND-PDC is a drone-mounted ultrasonic inspection system that collects wall thickness measurements from permanently installed WAND TM Sensors. It enables safe, efficient inspection of hazardous, elevated and difficult-to-access assets, with data transmitted wirelessly for analysis in iDART.
Which industrial inspection drones is WAND-PDC compatible with?
WAND-PDC features a modular plug-and-play design that can be attached to industrial inspection drones such as the Flyability Elios 3, ScoutDI Scout 137 Gen3 and Voliro T. It can operate as a standalone system or as part of an integrated UAV platform.
What are the key benefits of enabling WAND-PDC?
WAND-PDC helps reduce personnel exposure to hazardous environments, minimises the need for rope access and scaffolding, improves access to coated and insulated assets, and can collect up to 50 wall thickness measurements in around 20 minutes.
How does WAND-PDC collect and transmit data?
The payload communicates with installed WAND TM Sensors using inductive ultrasonic coils and RFID technology, providing reliable, repeatable wall thickness measurements with live A-scan readings. Data is transmitted wirelessly to the ground station and can be analysed in iDART for long-term corrosion monitoring.
Can WAND-PDC inspect insulated assets?
Yes. WAND-PDC can inspect insulated assets when used applied with the ECHO accessory, allowing wall thickness measurements to be collected without removing insulation. This reduces inspection time, cost and disruption while improving asset accessibility.
What is the WAND-PDC's wireless range?
WAND-PDC has a wireless payload range up to 100m / 328ft
